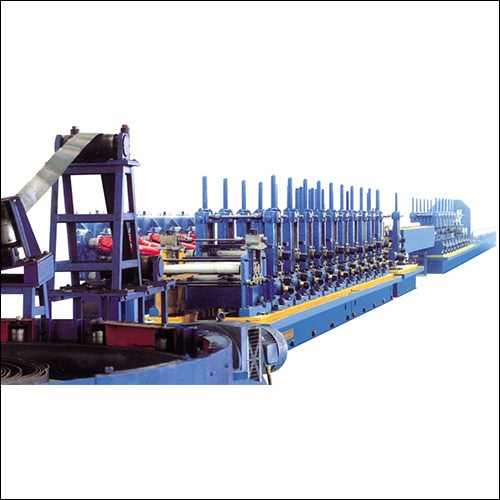

Welded Pipe Making Machine

Welded Pipe Making Machine
Welded Pipe Making Machine
Product Code : 28
Brand Name : SHANGHAI IVY IMPORT & EXPORT
Product Description

We offer Welded Pipe Making Machine which is the main equipment for the welded tube production line with roller forming principle, feed the steel strip, with roller function, tube billets are formed, then the tube edge will be heated to welding temperature due to the high frequency equipment. The machine is composed of uncoiler, leveling machine, butt welder, loop, straightening machine, high frequency equipment. Welded Pipe Making Machine is widely used in aviation, aerospace, nuclear power, power stations, oil refining, seawater desalination and other high-end pipe making field.

USP:

  • Good quality machining
  • Precision assembling
  • Fully automated

Main Specifications:

  • Raw Material Specifications
  • Low carbon steel, low alloy constructional steel CR, HR, GI coils
  • Mechanical properties: σb≤520Mpa, σs≤340MPa
  • Width range of steel strip : 30120mm
  • Thickness of steel strip: 0.52.5mm

Strip coil

  • Inner Diameter: φ580φ640mm
  • Outer Diameter: φ800φ1500mm
  • Coil Weight: ≤1.5 ton

Finished Pipe Specifications:

  • Pipe Diameter φ10φ38mm
  • Wall Thickness 0.52.5mm for round pipes; 0.5-1.8mm for square/rectangular pipes.
  • Length of Cutting   49m
  • Length-cutting precision:+/-3mm

Forming Speed

  • 20100m/min
  • Total Power Capacity
  • Approx. 400KW
  • Compressed Air:
  • Flow Rate: 6m3/min
  • Pressure: 57kg/ cm2

Water Supply for Machine Set

  • Flow Rate: 20T/h30 T/h
  • Reservation Pool Capacity: 30m3
  • Workshop Arrangement:
  • Width of Workshop: 6m
  • Length of Workshop: 50m
