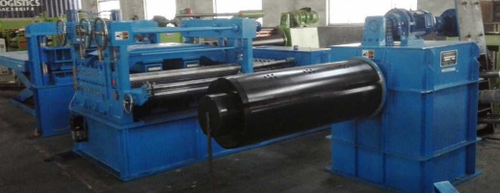

Thin Sheet Cut to Length Line

Thin Sheet Cut to Length Line
Thin Sheet Cut to Length Line
Product Code : 04
Brand Name : SHANGHAI IVY IMPORT & EXPORT
Product Description

Thin Sheet Cut to Length Line is one of the widely demanded special purpose machine for which we are considered an eminent manufacturer in the market. It is used in variegated industrial sectors to meet the diverse requirements of our customers. This is engineered using reliable quality raw material and advanced machinery at our unit as per the industrial set standards and norms. Thin Sheet Cut to Length Machine is thoroughly tested on various parameters to serve our clients only with the flawless range.

Cut-to-length line is a production line to make flat metal plates from coils, the main units are decoiler, leveler, length-measuring and shearing, and stacking.

Salient Features :

  • The normal cut to length adopts encoder length measuring and mechanical stop shear.
  • The layout include: uncoiler, pinch-feeder, pit accumulator, side guide, leveler, encoder, shear, automatic stacker.
  • Sheet thickness ranges 0.3-3mm, 0.6-4mm, width usually up to 1250mm, 1600mm.
  • Line speed 30m/min, max 8-10pcs for 2m sheets.

The detail specification as follows:
1. YJ-(0.3-3)×1600mm Cut to Length Line
Material of coils: CR galvanized steel plate, carbon steel and etc.

  • Strip thickness: 0.3~3mm
  • Strip width: 300~1600mm
  • Inner diameter of coils: Φ480-520mm.
  • Max.outer diameter of coils: Φ900-1800mm
  • Max.coil weight: 15000kg
  • Uncoiling mandrel: Ф508×1700mm
  • Leveling roller: Φ85
  • Material of leveling roller: 40Cr
  • Material of disc cutter: 6CrW2Si
  • Recoiling spindle: Φ508×750mm
  • Cutting speed: (0~60) m/min, adjustable

2. YJ-(0.5-3)×1800mm Cut to Length Line

  • Material of coils: stainless steel
  • Strip thickness: (0.5~3) mm
  • Strip width: 300~1800mm
  • Inner diameter of coils: Φ480-520mm.
  • Outer diameter of coils: Φ900-1800mm
  • Max.coil weight: 15000kg
  • Uncoiling mandrel: Ф508x1700mm
  • Leveling roller: Φ85
  • Material of leveling roller: 40Cr
  • Material of disc cutter: SKD-II
  • Recoiling spindle: Φ508×750mm
  • Cutting speed: (0~100) m/min, adjustable

Technical Parameters of Thin Sheet Cut to Length Line:

Strip thickness

Strip width

Max coil's weight

Shearing speed

0.2-1.5mm

900-2000mm

30T

0~100m/min

0.5-3mm

900-2000mm

30T

0~100m/min
